Subsea Field Architecture: The Backbone of Offshore Oil & Gas Production
Subsea field architecture is the strategic arrangement and integration of all subsea components required to safely produce hydrocarbons from the seabed and transport them to surface or onshore facilities. It is not just a layout—it is a multidisciplinary engineering decision framework that balances reservoir behavior, flow assurance, reliability, cost, and long-term operability.
As offshore developments move into deeper water, longer tie-backs, and more complex reservoirs, subsea field architecture has become a key value driver in offshore projects.
What Is Subsea Field Architecture?

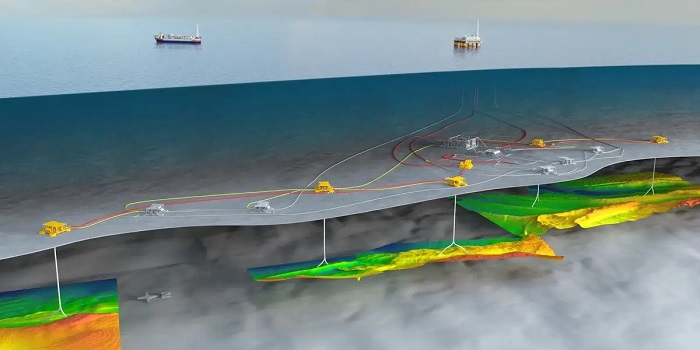

Subsea field architecture defines how wells, subsea equipment, pipelines, and control systems are configured and connected across a field’s lifecycle—from first oil to abandonment.
It answers critical questions such as:
Where should wells be located?
How many wells per manifold or template?
Should the field be a tie-back or stand-alone?
What level of subsea processing is required?
How will flow assurance risks be managed?
In short, subsea field architecture transforms reservoir potential into producible barrels.
Core Building Blocks of Subsea Field Architecture
1. Subsea Wells and Trees
Subsea wells are completed with vertical or horizontal subsea trees, which provide:
Well flow control
Safety isolation
Chemical injection
Monitoring (pressure, temperature, sand)
Tree selection (VXT vs HXT) directly affects intervention strategy, CAPEX, and lifecycle cost.
2. Manifolds and Templates
Subsea manifolds act as gathering and distribution hubs, allowing:
Commingling of production
Well testing and isolation
Injection (water or gas)
Reduction in flowline and riser count
Templates enable clustered well drilling, improving installation efficiency and reducing seabed footprint.
3. Flowlines, Jumpers, and Risers
Flowlines transport production from wells/manifolds.
Jumpers provide flexible or rigid connections between subsea assets.
Risers carry fluids to surface facilities or shore.
Their routing, insulation, and material selection are critical for flow assurance and integrity management.
4. Umbilicals and Control Systems
Umbilicals are the lifelines of subsea systems, carrying:
Hydraulic power
Electrical power
Control signals
Chemical injection fluids
Modern developments favor multiplex electro-hydraulic or all-electric control systems for long-distance tie-backs and faster response times.
Common Subsea Field Architecture Configurations
1. Tie-Back Architecture
Subsea wells are connected to an existing platform or onshore facility.
Advantages
Lower CAPEX
Faster development
Ideal for marginal fields
Challenges
Long flowlines
Flow assurance risks
Control system response times
2. Stand-Alone Subsea Development
Subsea wells connect to a new FPSO or floating facility.
Advantages
Full field autonomy
Optimized production strategy
Challenges
High CAPEX
Longer project schedules
3. Clustered Wells and Templates
Multiple wells drilled through a single template.
Benefits
Reduced drilling time
Compact seabed layout
Simplified installation
4. Daisy Chain Configuration
Wells connected sequentially without a central manifold.
Best suited for
Small fields
Early developments
Low well count scenarios
Key Design Drivers in Subsea Field Architecture
Reservoir Characteristics
Pressure and temperature
Drive mechanism
Water cut evolution
Need for artificial lift
Flow Assurance
Hydrate formation
Wax and asphaltene deposition
Cooldown and restart scenarios
Insulation and heating strategy
Water Depth and Distance
ROV-only operations in deepwater
Umbilical size and cost
Installation vessel capability
Reliability and Availability
Redundancy philosophy
Intervention strategy
Access for inspection, maintenance, and repair (IMR)
The Role of Subsea Processing in Architecture
Modern subsea architectures increasingly integrate subsea processing, such as:
Multiphase boosting
Subsea separation
Water injection
Gas compression
These technologies:
Reduce backpressure
Extend field life
Enable ultra-long tie-backs
Improve recovery factors
Subsea processing is no longer experimental—it is a strategic architectural choice.
Why Subsea Field Architecture Matters
A well-optimized subsea field architecture:
Reduces total lifecycle cost
Improves production uptime
Enhances safety and reliability
Provides flexibility for future tie-ins
Maximizes reservoir value
Poor architectural decisions, however, can lock in inefficiencies for decades.
